Stirling Heat Engines
NOTE: I have updated this page Friday 20th November. It now
has most of my Stirling engine designs (will finish adding them next week).
I am currently building three of them (see below), I hope to encourage others
to build and experiment too!
Geoff Haselhurst
Introduction
I have been fascinated by Stirling Engines for several years now and have
built one prototype that did not work. But we learn a lot by doing things
so the time was not wasted. Since then I have built hundreds of designs
in my head, below is a list of the 6 best (as I see things).
The design principles are: Simplicity - Use of existing technology - Cheap
and easy to build - Potentially high power output (5 kilowatts) - Suitable
for third world applications.
1. Liquid Piston Heat Injection Stirling Engine
I am currently building this - I hope to finish it this weekend (it is
very simple). This Stirling heat engine can be used as a water pump, or
it can be connected to a metal piston - flywheel - alternator and be used
as a generator. (I may be able to use a linear alternator and avoid the
piston / flywheel - I need to do more research if / when machine works!)

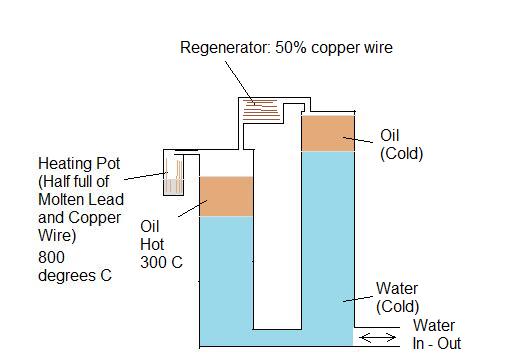

How this Oil Vapor 'Explosion' Stirling Engine Works:
The two columns of water / oil act as liquid pistons.
In the diagram, the cold side is higher thus the liquid will level
itself causing the hot side to rise, transferring the hot working
gas through the regenerator (stores heat energy) to the cold side
where it contracts and water is sucked in from inlet.
When the hot oil reaches the top of the cylinder some (~ 20 mls)
of oil flows into the Heating Pot. The vaporized oil expands pushing
the hot side down, the cold side up and also pumping water out.
This also transfers the cold gas back through the regenerator (heats
gas) and into the hot side where it is further heated by the vaporized
oil.
Once the pressure equalizes in both cylinders then the liquid pistons
will again level themselves, causing the cycle to repeat.
Some further thoughts on this Stirling Engine Design
Stirling engines do not use change of phase which is inefficient because
energy is wasted in breaking molecular bonds (latent heat). However, in
this Stirling engine we are using the change of phase (oil falling on 800
C copper and lead) to create a very hot oil vapor that then transfers its
energy to the working gas, thus the energy is not wasted (some will be lost).
This has three advantages;
i) We can use copper and molten lead in the heating pot and thus heat it
to around 800 C.
ii) This allows a rapid heat transfer to the working gas as it mixes with
the very hot oil vapor (very large surface area due to the mixing of the
hot and cold gasses).
iii) We get very rapid high pressures - more like a combustion engine.
Further design considerations;
i) It may need float valves at the outlets of each cylinder to the regenerator
to stop liquid moving around the top of the Stirling engine.
ii) In terms of cooling the gas I am going to experiment with 2 methods.
a) Add copper wire inside top of cold cylinder and have intake water that
flows in around the outside of the cold cylinder thus cooling it (so add
another larger pipe around it with water in space).
b) In the cooling phase bubble the hot gas through cold water in cold cylinder,
and then in the expansion phase this water would be pumped out (if the Stirling
engine is used as a water pump).
iii) To begin I will simply use a fire to heat the hot side (wood has about
4kw/hrs of energy per kg, and a fire easily reaches temperatures of 600
degrees celsius).
The cold side will be cooled to around 70 degrees celsius by running water
(I have a lot of ponds and creeks on my property!). If they work then in
the long term I would use solar heat energy.
2. Liquid Piston Stirling Heat Engine
I have not drawn a diagram yet (I will) but it is similar to the above
design - just with the heat injection / change of phase explosion removed
so it is a pure Stirling engine (it just heats and cools gas to push and
pull on the liquid pistons).
Simply remove the heating pipe and make the hot and cold cylinders the
same height. Heat is applied directly to the hot cylinder so this is limited
to around 350 C (the boiling point of oil).
Add cooper wire to the inside top of each cylinder and get the liquid rocking
and the hot expansion of gas will hopefully cause it to continue to cycle.
I am also going to add a 40 KG lead weight hanging on springs inside the
cold cylinder that acts as a heavy piston that helps the liquid to rock
(stores more of the expansion energy by lifting the lead weight, which then
wants to fall).
3. Six Cylinder Petrol / Diesel Motor
Converted into Six Stirling Engines
I have put this Stirling engine on its own page. It is a high pressure
(100 Atmospheres) mid temperature (350 C) metal piston / liquid oil piston
Stirling engine. Basically just connecting two 6 cylinder petrol motors
together 90 degrees out of phase and replacing the heads with heating and
cooling cylinders half full of oil and copper wire - connected via a regenerator.
It is nearly finished (I worked on it about 4 months ago, but I have been
away ... ). I hope to finish it in the next few weeks.
I have several more designs to add ... some time in the next month I hope.
Please write to me if you wish to be involved.
Cheers,
Geoff Haselhurst
(November 20th, 2009 - yes I am working on them at the moment while also
writing up some physics and philosophy for this website.)
